Automated Recognition and Target Classification

Electronic Warfare and Cyber Capabilities

Launchers

Engagement and Fuzing

Spectrum Monitoring and Mitigation

Innovative and Intuitive Robotics

Engagement and Fuzing Solutions for Precision Fires

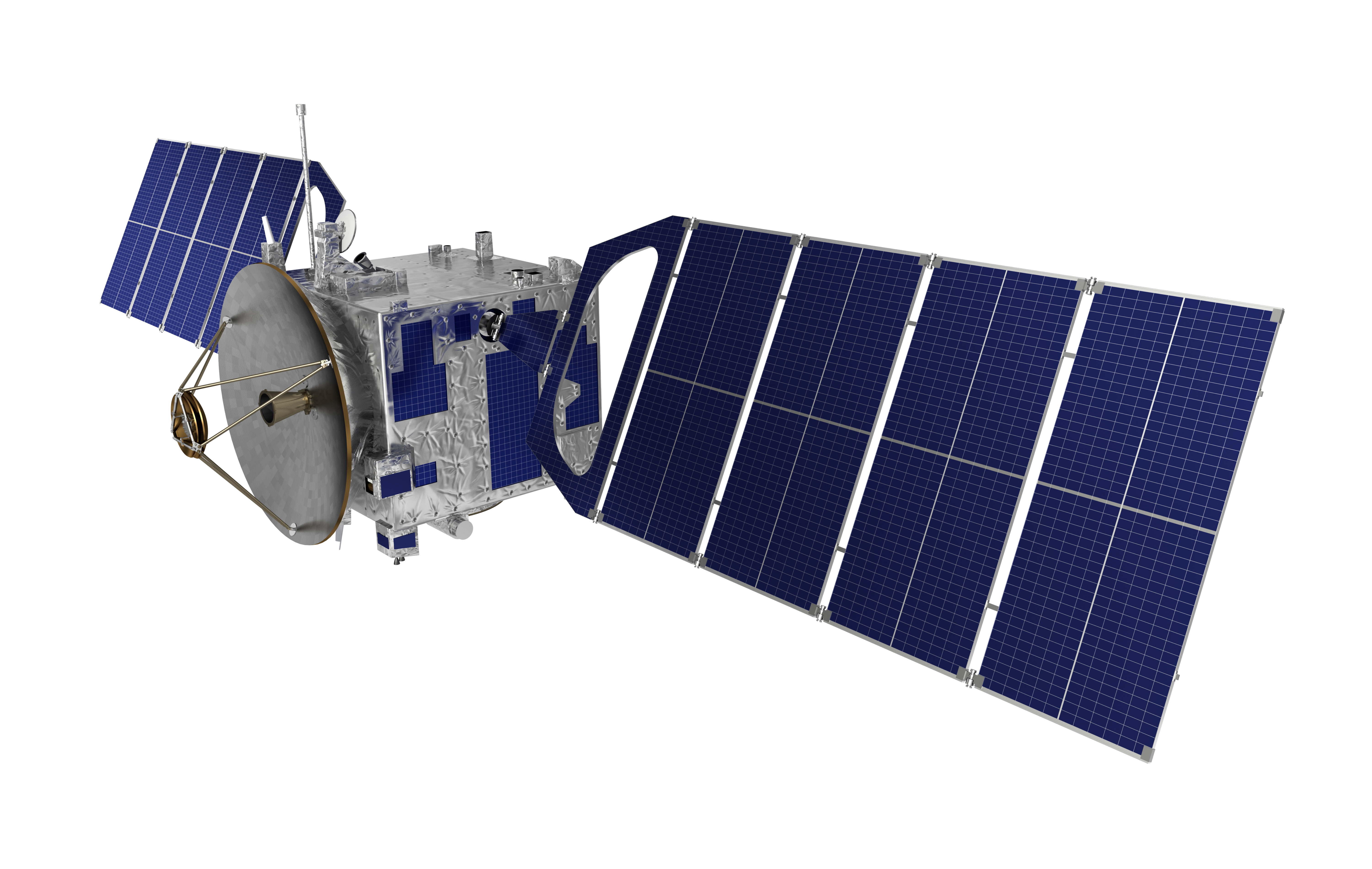

L3Harris' radio frequency (RF) interference monitoring and mitigation systems provide a high-performance, low-risk solution to protecting satellite and terrestrial data from harmful RF interference. With a flexible, software-defined architecture, systems are scalable to respond to expanded spectrum sharing and new interference sources. The single antenna autonomously, automatically and instantly detects and classifies interference from multiple sources.

Spectrum Monitoring and Mitigation

L3Harris is providing critical components to the U.S. Army for the Family of Counter-Unmanned Aircraft System (CUAS) Systems (FoCUS) Science and Technology program. This program will prototype, test and deploy an integrated CUAS passive detect, I.D. and defeat capability with artificial intelligence/ machine learning (AI/ML) aided target acquisition, tracking and classification. L3Harris integrates gimbal, sensors, government furnished equipment laser defeat modality and provides FarSight AI/ML software.

Automated Target Detection and Classification

CMOSS-based open system designed for tactical multifunction electronic warfare (EW) operations - dismounted, mounted and fixed site. Enable the EW network as a weapon by connecting with the AN/PRC-163 radio to gain network-level situational awareness and operation at each node with our application. Three slots, MORA radiohead, support, attack, cyber and denied environment networking functions.

Electronic Warfare and Cyber Capabilities

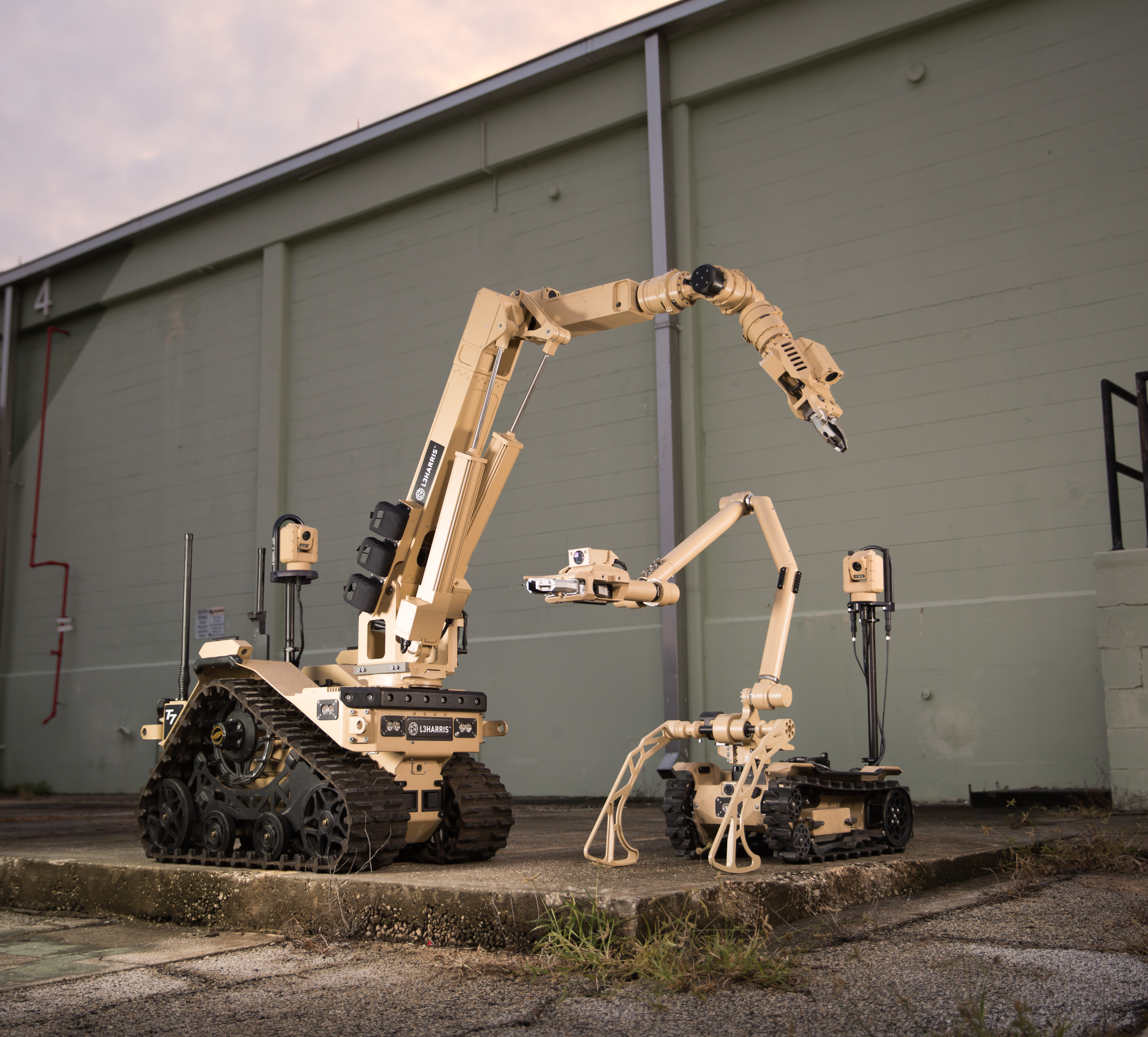

L3Harris has created robotic systems with innovative and intuitive haptic control that provides operators with crisp, real-time feedback to enhance situational awareness for robotic manipulation in harsh environments. Our robotic solutions execute a wide range of missions including explosive ordnance disposal; chemical, biological, radiological, nuclear and explosives detection; intelligence, surveillance and reconnaissance (ISR); and hazardous materials clearance.

Innovative and Intuitive Robotics

As the industry leader in fuzing and sensing technology, L3Harris provides innovative and enabling solutions to deliver enhanced lethality across the spectrum of Precision Fires. We are committed to solving the toughest fuzing and sensing challenges while delivering unmatched quality and reliability to the warfighter. Our innovative culture and commitment to collaboration provides enhanced capability to ensure the Army obtains overmatch superiority across the Fires domain. Features: Electronic Safe & Arm Devices/Fuzes (ESAD/ESAF), Ignition Safety Devices (ISD), Proximity/Height of Burst (HOB) Sensors Benefits: Increased reliability and survivability, proven safety for rocket motor ignition, selectable effects for enhanced lethality

Real-time electronic attack, "Mako," SOSA-aligned CREW transceiver/processor card in development to support both next generation EGON solutions and CMOSS-based cyber chassis. Capability is designed for maximum band coverage and simultaneity in providing electronic force protection at reduced power levels. Architecture will apply to fixed site, mounted and dismounted systems. Open system interfaces provided for third party techniques development.

Next Generation Architectures for Force Protection

L3Harris Air and Missile Defense technology provides capability supporting US Army full spectrum, Multi-Domain Operations priorities at all levels of modernization. Specifically in Mobile Short Range, Directed Energy, EW & Cyber, Ruggedized Robotics and Energetics.

Air and Missile Defense

CUAS

FoCUS

Automated Target Detection and Classification

Family of Counter-Unmanned Aircraft System (CUAS) Systems (FoCUS)

Advanced Image Processing

FarSight

L3Harris' FarSight EO/IR processor automatically detects and recognizes targets of interest from and EO/IR sensor. The FarSight architecture is intentionally built to reduce workload for the warfighter by automating sensors tasking and auto-classification routines, speeding up sensor-to-shooter linkages and engagement decisions.

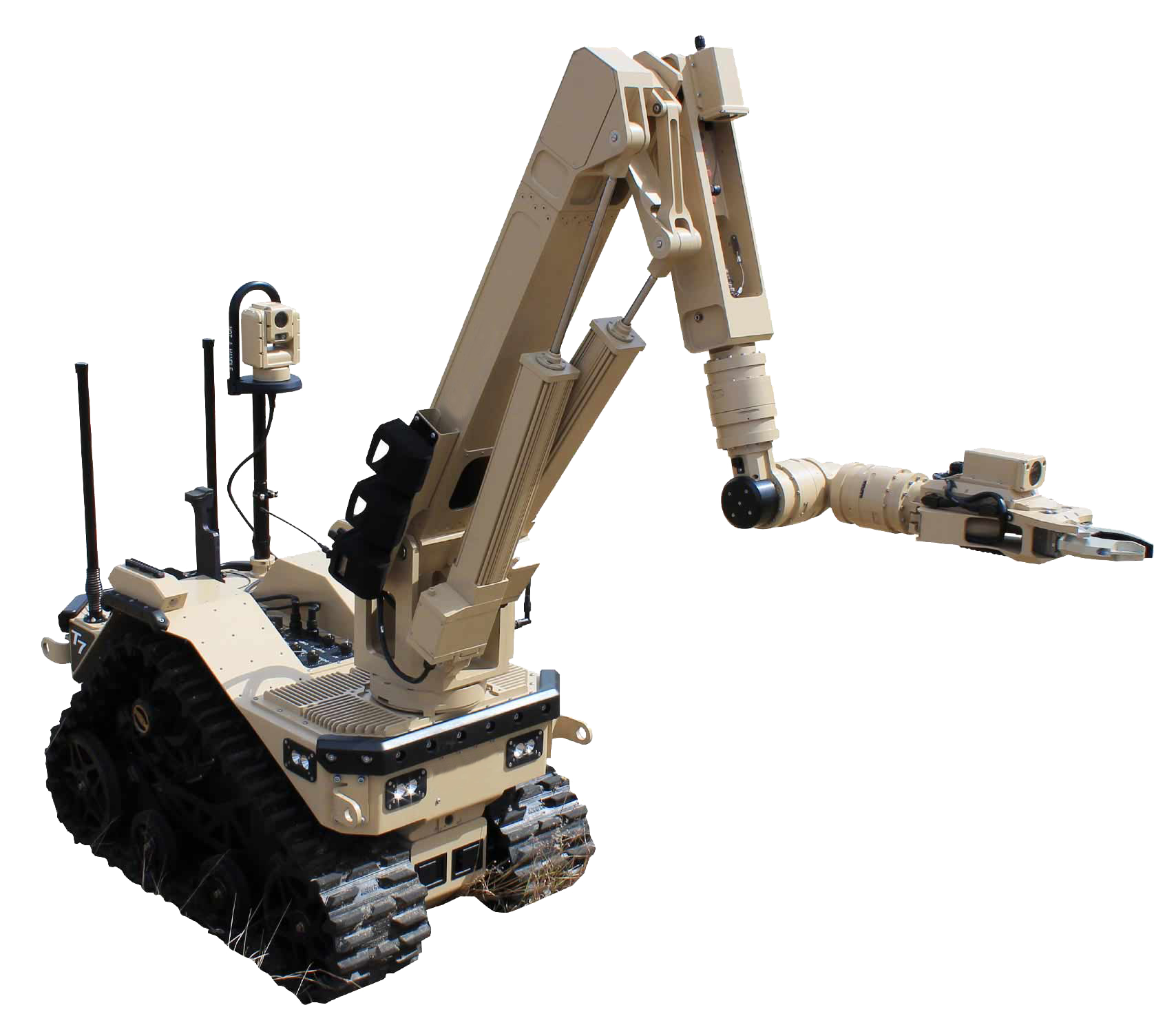

T7 provides best-in-class manipulation and control capabilities with haptic (force) feedback and intuitive motion control.

TRUTRACK M-Code Product Family

TRUTRACK-M TYPE II

Innovative and Intuitive Robotics

Robotic System

T7 BENEFITS

Outstanding range Highly reliable EMC compatibility Ease of deployment Sensor integration

> > > > >

L3Harris is proud to be the largest fuze provider to the U.S. Army.

Supporting legacy munitions programs and next generation systems such as PrSM Fast-to-flight testing for multiple platforms Collaborative approach to new development

> > >

Engagement and Fuzing Solutions for Precision Fires

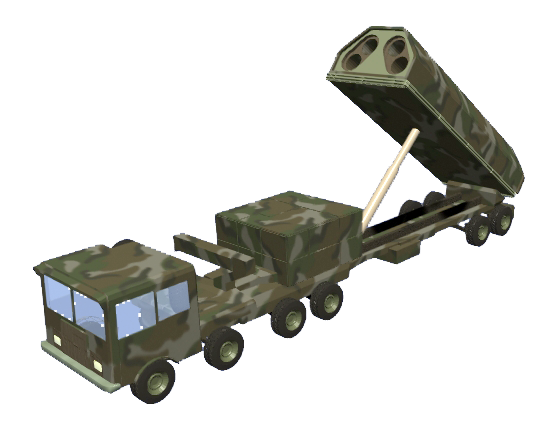

The MLRS (M270 platform) using the PNA with an embedded GPS is upgradable to meet the future M-Code requirements. The HIMARS missile launcher platforms use the Upgrades Position Navigation Unit (UPNU), an older version of the PNA with the same functionality. The PNA and UPNU also provides a "hot start" at the initial starting coordinates for the guided missiles just prior to firing. Features: High performance RLG, MOSA, high commonality with other programs PNA Benefits: Azimuth probable error 40% better than spec, M-Code upgradable, low life cycle cost DRU-H-R Benefits: High pointing and stabilization accuracy, easily upgradable, low life cycle cost, extended firing range to 70 km

Launchers

Position Navigation Assembly (PNA) and Dynamic Reference Unit-Hybrid-Replacement (DRU-H-R) for modernized warfare.
